General

Running Postman Collections in CI

Using the newman CLI to run Postman collections in Azure Pipelines

  • #api
  • #integration
  • #azure

Postman is a feature-rich API client for building, managing and testing APIs. It allows people to share their API collections easilly with a JSON export file. It is also a great tool to test against API endpoints and can be integrated into CI environments.

Post-response Script

Postman allows custom hooks written in JavaScript that binds to a request for both before and after the API execution. The post-response script can be used to write API integration tests.

It can be found at the section under scripts > Post-response.

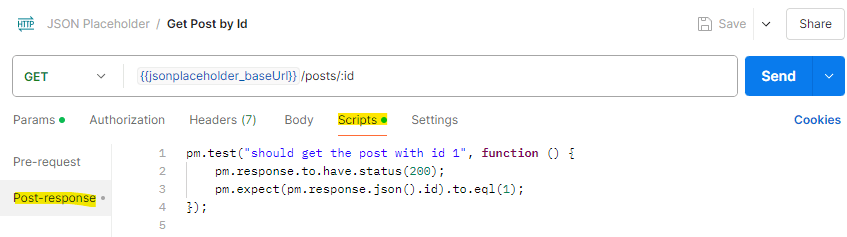

The screenshot showing the post response script

It will execute the test after the API call and display the test results at a separate tab below.

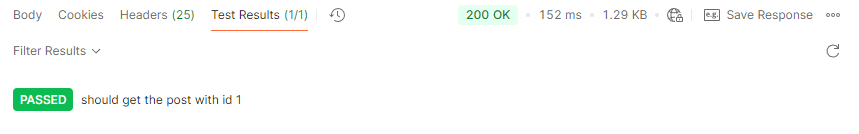

The screenshot showing test passed

Examples

We can create a test scenario with pm.test and perform assertions in a fluent interface. The example below asserts the response's status code to be 200 OK.

pm.test("Status code should be 200", function () {
  pm.response.to.have.status(200);
});

Next, we can retrieve the response's content in JSON to perform assertions as follows.

pm.test("Should have correct JSON response body", function () {
  const content = pm.response.json();

  pm.expect(content).to.be.an('object');

  pm.expect(content['title']).to.be.eql('foo');
  pm.expect(content['body']).to.be.eql('bar');
  pm.expect(content['userId']).to.be.eql(1);
});

Newman CLI

Newman CLI is a command line tool for running Postman Collections. It can be installed from NPM or use as a Docker container.

npm i -g newman

We can export a Postman collection by clicking on the ellipsis icon of the collection and then the export option. The exported collection will be named as <Collection Name>.postman_collection.json.

The example below demonstrates the execution of my collection named Hoppscotch.postman_collection.json that calls to the Hoppscotch echo endpoint.

newman run Hoppscotch.postman_collection.json

It will tabulate the results nicely after the execution.

Hoppscotch

โ†’ Echo
  GET https://echo.hoppscotch.io [200 OK, 1.84kB, 754ms]
  โˆš  Status code should be 200
  โˆš  Should contain method

โ”Œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ฌโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ฌโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”
โ”‚                         โ”‚           executed โ”‚            failed โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚              iterations โ”‚                  1 โ”‚                 0 โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚                requests โ”‚                  1 โ”‚                 0 โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚            test-scripts โ”‚                  1 โ”‚                 0 โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚      prerequest-scripts โ”‚                  0 โ”‚                 0 โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ผโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚              assertions โ”‚                  2 โ”‚                 0 โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ดโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ดโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚ total run duration: 798ms                                        โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚ total data received: 1.2kB (approx)                              โ”‚
โ”œโ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”ค
โ”‚ average response time: 754ms [min: 754ms, max: 754ms, s.d.: 0ยตs] โ”‚
โ””โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”€โ”˜

Azure Pipelines

Newman CLI can be integrated to Azure Pipelines easily. The example below shows an excerpt of the azure-pipelines.yml configuration file for running the Postman collection using newman.

azure-pipelines.yml
steps:
  - task: NodeTool@0
    inputs:
      versionSpec: "22.x"
    displayName: "Install Node.js"

  - script: npm install
    displayName: "Install dependencies"

  - script: npx newman run collections/Hoppscotch.postman_collection.json
    displayName: "Run integration tests"

To execute multiple collections in the script stage, we will need to use call for each of them individually. The -e flag can be used for collection that requires variables defined in the environments file.

azure-pipelines.yml
- script: |
    call npx newman run collections/Hoppscotch.postman_collection.json
    call npx newman run "collections/JSON Placeholder.postman_collection.json" -e environments/Scratchpad.postman_environment.json
  displayName: "Run integration tests"
